PROTO Click

$5.50

16 in stock

Product Description

Overview:

Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. For each of the Click boards stocked by Parallax, you will find a documented Spin 2 code example on our Propeller GitHub Object Exchange. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter.

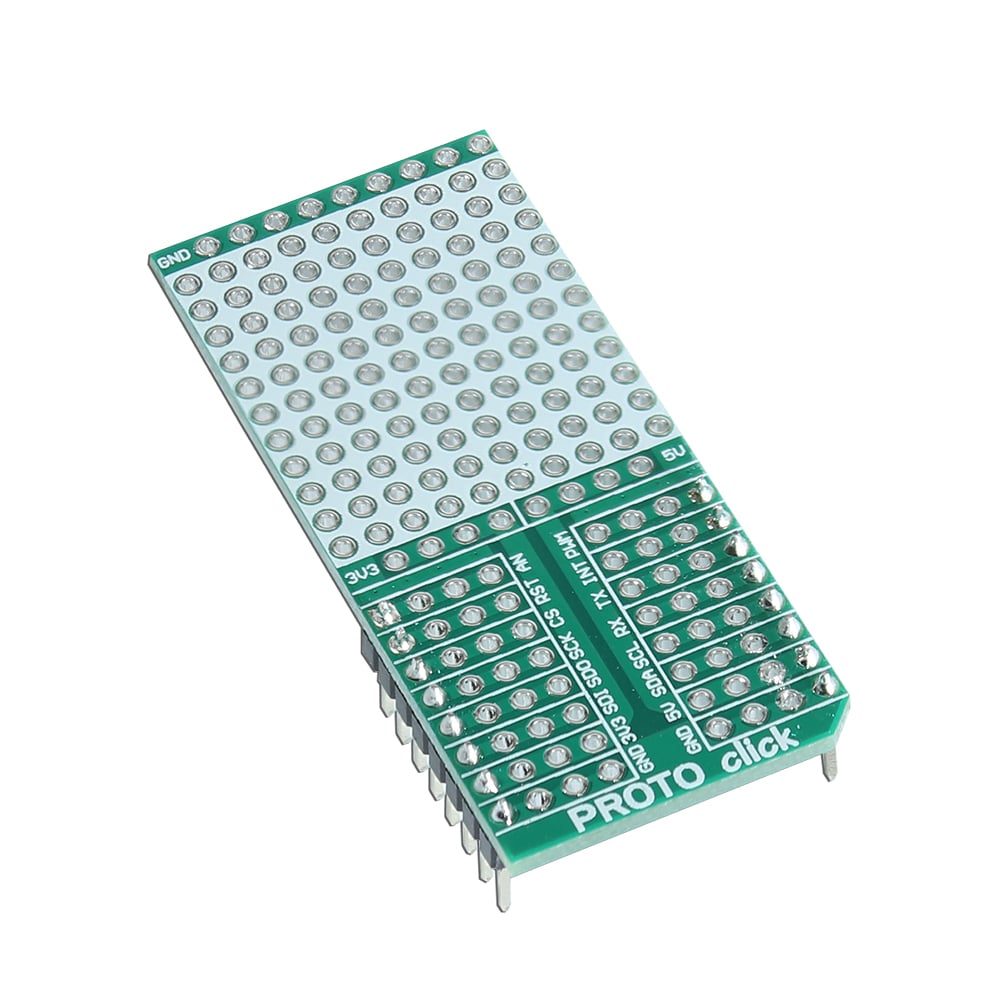

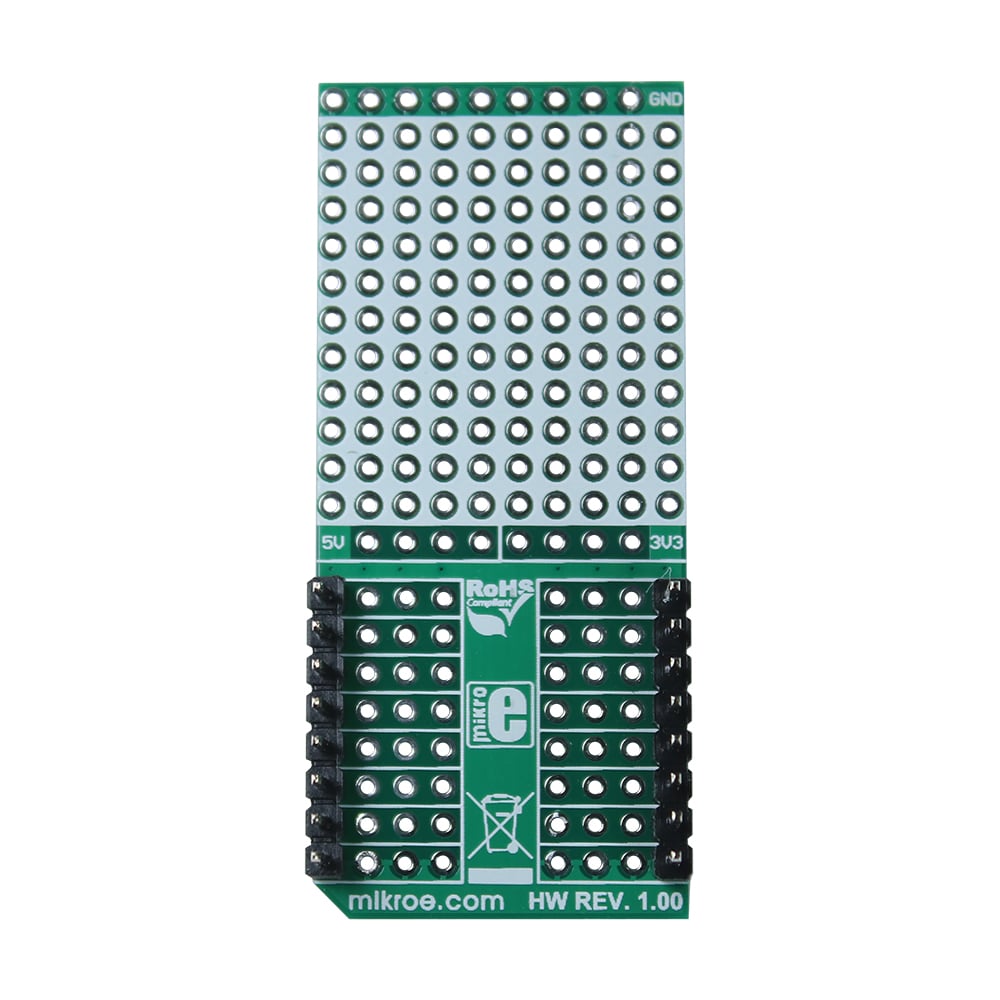

PROTO click is an accessory board in mikroBUS form factor. It features 10×11 prototyping area as well as additional power pads. It can be used to assemble custom electronics thus creating a custom click board. The board provides 3.3V and 5V power supply. PROTO click board is a cheap and effective solution for creating click board of your own design. Add sensors, drivers, passive components and make the click board which suits your project needs. Use it with all your favorite development boards which carry mikroBUS™ sockets.

PROTO click features a 10×11 prototyping area as well as additional power pads. It can be used to assemble custom electronics. The board has standard mikroBUS™ I2C (SDA, SCL), SPI (MISO, MOSI, SCK, CS), UART (TX, RX), PWM, INT, AN and RST lines from the target board microcontroller. The board provides both 3.3V and 5V power supply connections.

Specifications:

  • Type: Proto
  • Proto area: 10 x 11
  • Interface: GPIO
  • Compatibility: mikroBUS
  • Click board size: L (57.15 x 25.4 mm)
  • Input Voltage: 3.3V,5V
  • Weight: 30g

For schematic and user manual, see the manufacturer’s product page.

Additional Information

Weight 0.0406 lbs
Dimensions 1 × 1 × 1 in
