P2-ES Eval Protoboard Add-on

SKU 64005-ES Categories , , ,

$8.99

41 in stock

Product Description

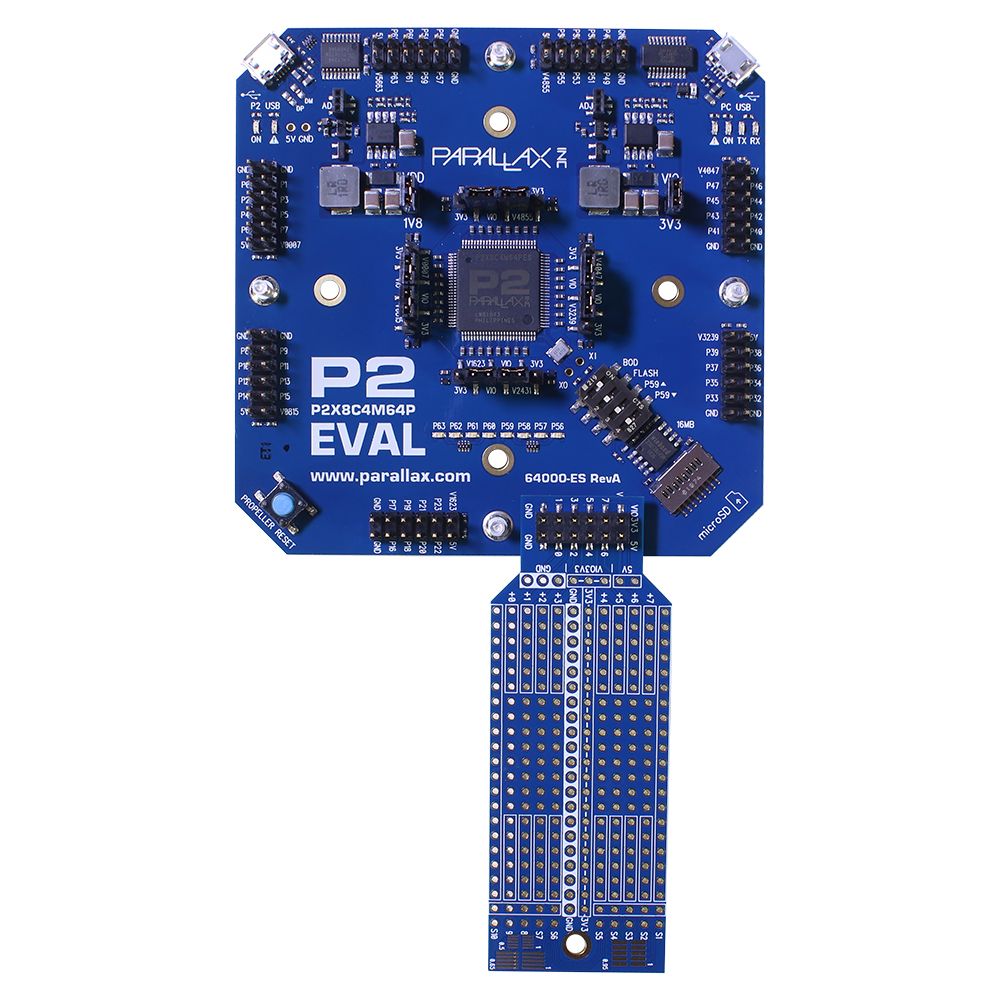

This prototyping board is designed for use with Propeller 2 development board 2×6 accessory headers. Its 2×6 pass-through socket stack on top of an accessory header on the P2 Eval Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.. The 2×6 surface-mount pass-through header is included but not installed, so the user may choose a different style header as desired.

Features:

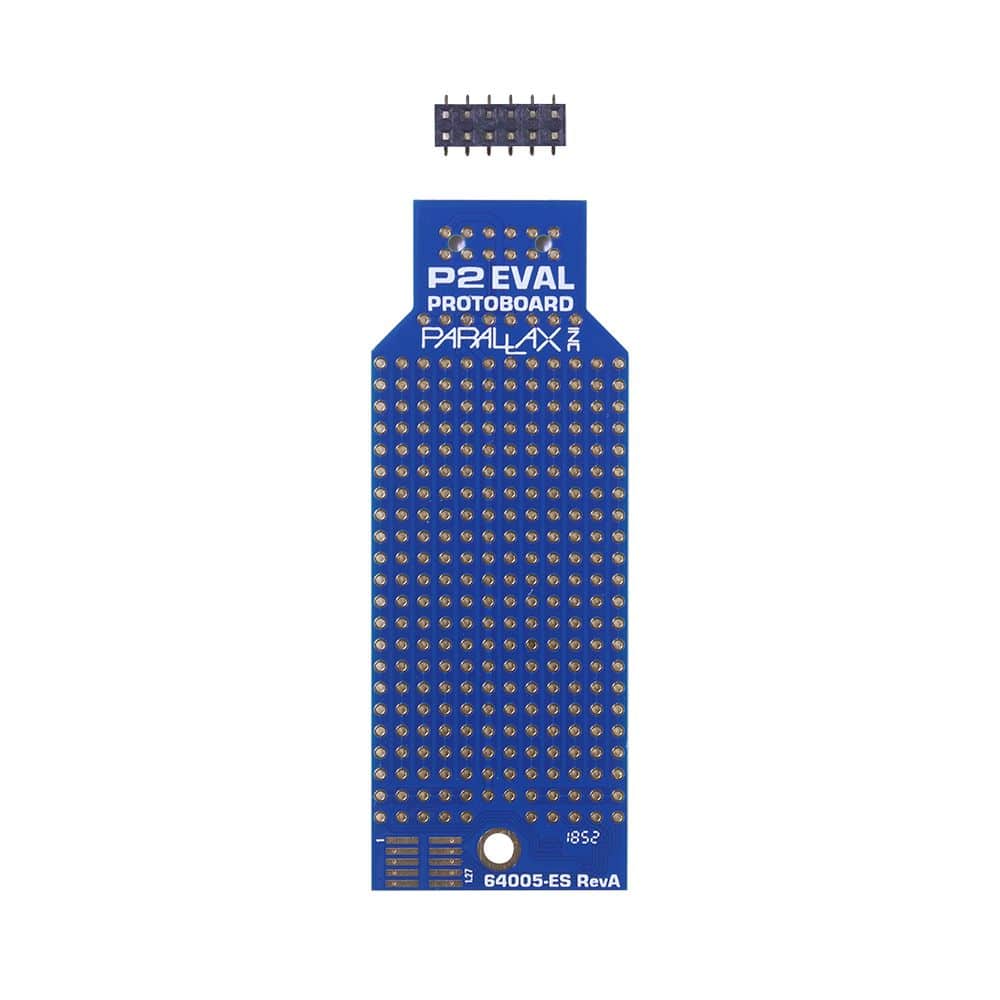

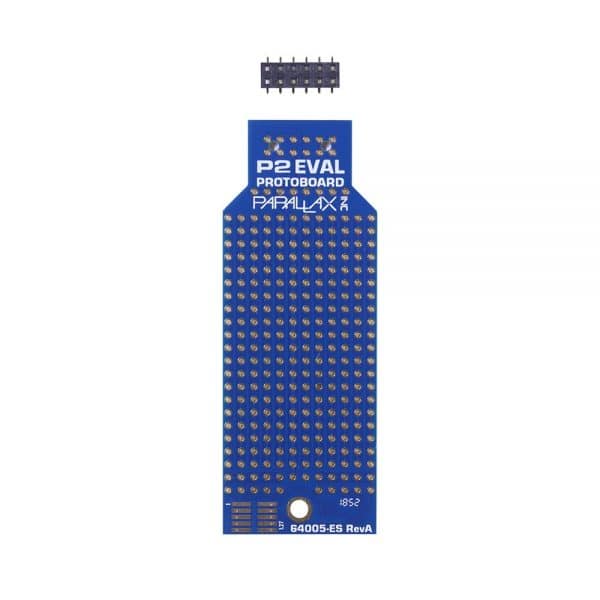

  • Easy to solder 2×6 socket SMT pass-thru header is included
  • Stacks on top of P2-ES Eval Board’s I/O Headers

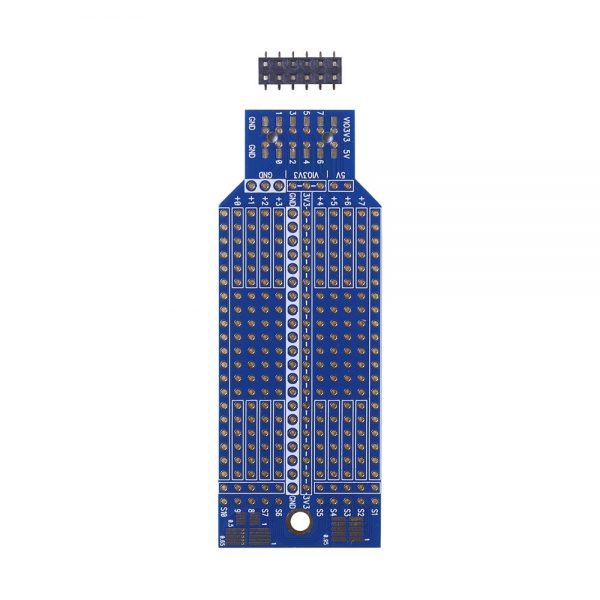

  • Labeled thru-hole groupings for accurate prototyping
  • 10-pin SMT footprints in 0.5 mm, 0.95 mm, and 1.27 mm pitch
  • PCB Dimensions:  3.2 x 1.2 inches overall



Additional Information

Weight 0.022 lbs
Dimensions 1 × 1 × 1 in
