Heavy Duty Caster Wheel Kit

SKU 64080 Category


45 in stock

Product Description

Heavy Duty Caster Wheel Kit Overview:

The Heavy Duty Caster Wheel Kit features a solid caster wheel and a custom-machined aluminum sleeve for attaching the assembly to your project’s platform or chassis.  The 3″ caster wheel is made from solid polyurethane for quiet, mark-free rolling on hard floors.

The Heavy Duty Caster Wheel Kit was designed as a sleek, quiet, smooth-rolling yet durable companion to our Hub Motor with Encoder (#34080).  In addition, the sleeve may be may be installed on the caster wheel in either orientation, so it is also height-compatible with the Motor Mount and Wheel Kit (#28962), as a replacement for the Caster Wheel Kit Rev B (#28961).

Though the sleeve fits firmly on the caster wheel shaft, a small set screw is included to hold the sleeve in place should you desire the extra security.

Heavy Duty Caster Wheel Kit Features:
  • Sleek, solid 3-inch polyurethane wheels are quiet and won’t leave marks on floors
  • Precision ball bearings for smooth swiveling and rolling

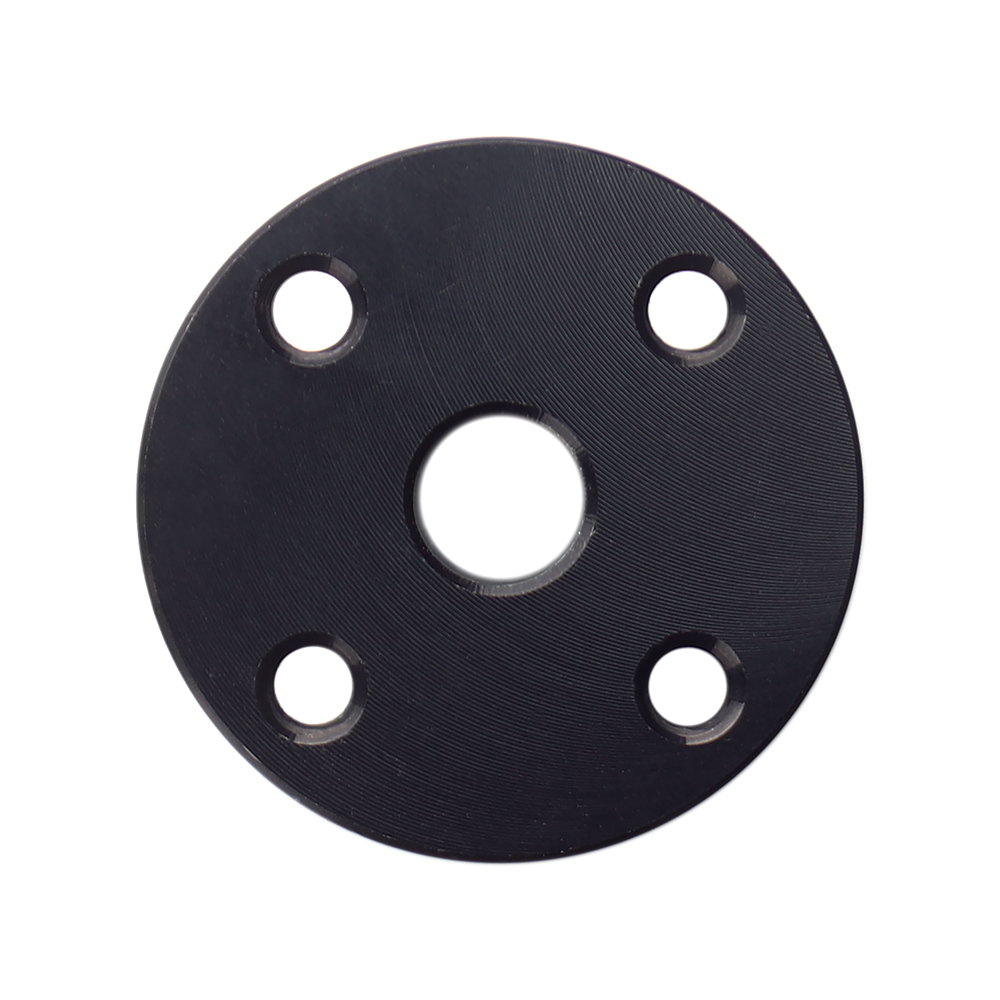

  • Sleeve is milled from 6061 aluminum, anodized black to match the caster wheel hardware
  • Four threaded 1/4-20 mounting holes make it easy to attach to your project’s platform or chassis
  • Supports up to 100 lb load
  • Sleeve designed and manufactured in California, USA

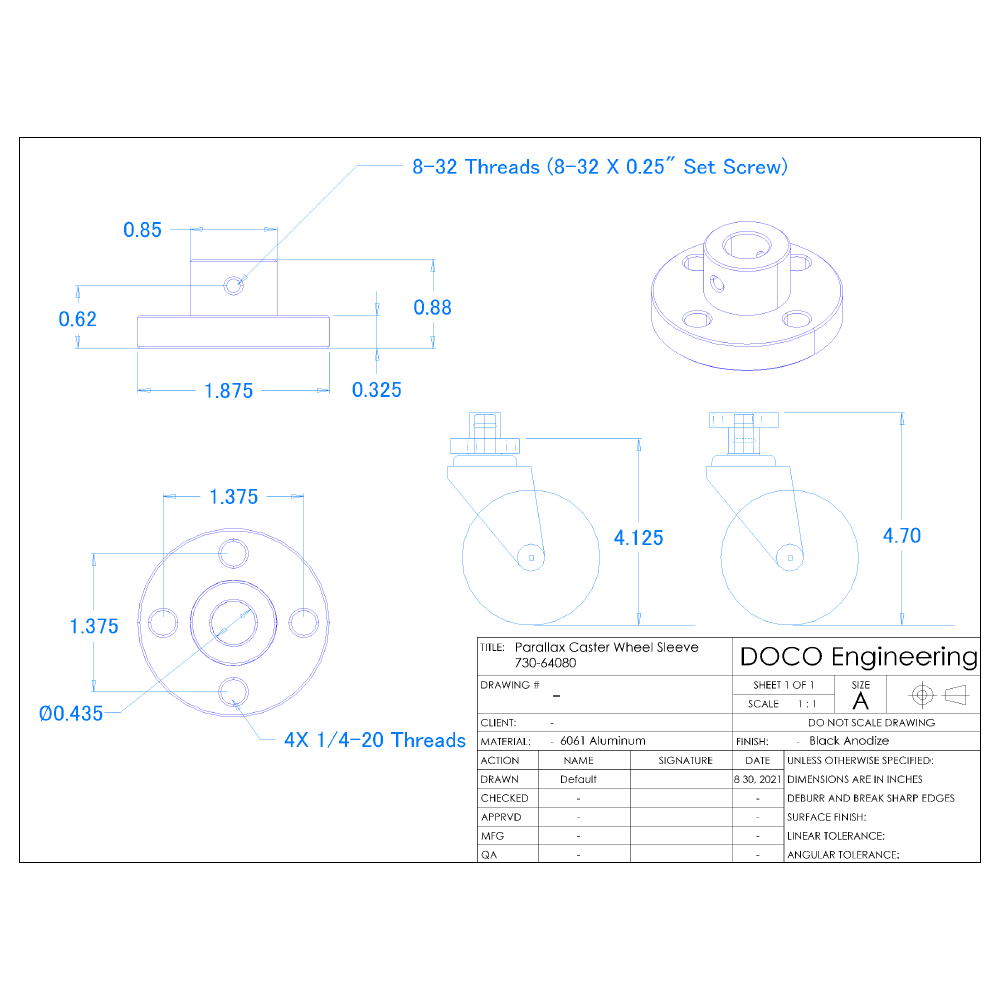

See the diagrams under Downloads for sleeve dimensions and mounting options.


Additional Information

Weight 0.75 lbs
