Caster Wheel Kit Rev. B

$39.00

15 in stock

Product Description

Note: Quantity limited to stock on hand. See also the Heavy Duty Caster Wheel Kit (#64o80).

Overview:

This kit contains a single, precision-machined caster assembly. High-quality 6061 machined aluminum components are combined with smooth-rolling ball bearings and durable 3-inch pneumatic rubber tires. The dual independent tire design reduces vibration and drag, as well as increases load-carrying capacity.

This Caster Wheel Kit Rev B is designed to be completely maintenance-free, and should deliver long life and consistently performance. The durable, sealed pneumatic tires are low-bounce and provide a smooth ride, even on rough surfaces.

Key Features:

  • Dual 3-inch (76 mm) sealed pneumatic rubber tires
  • High quality ball bearings for low-friction swivel action
  • Quick and easy assembly
  • 6061 aluminum parts precision-machined in Rocklin, California

Application Ideas:

  • Autonomous indoor/outdoor robot development
  • Tele-presence robot base platforms
  • Sentry/Surveillance robot designs

Note: If using with the Arlo Robotic Platform System, you will need two Caster Wheel Kits to help stabilize the robot.

  • Overall height is 3.80 inches (9.65 cm)
  • Ball bearing swivel assembly included
  • Weight = 0.4 lbs per assembly
  • Dimensions: 3 inches (15.24 cm) diameter.  Wheel outer pivot arc swing is approx 6 inches (15.24 cm) in diameter
  • Operating temperature range: +32 to +120 °F (0  to +49 °C)

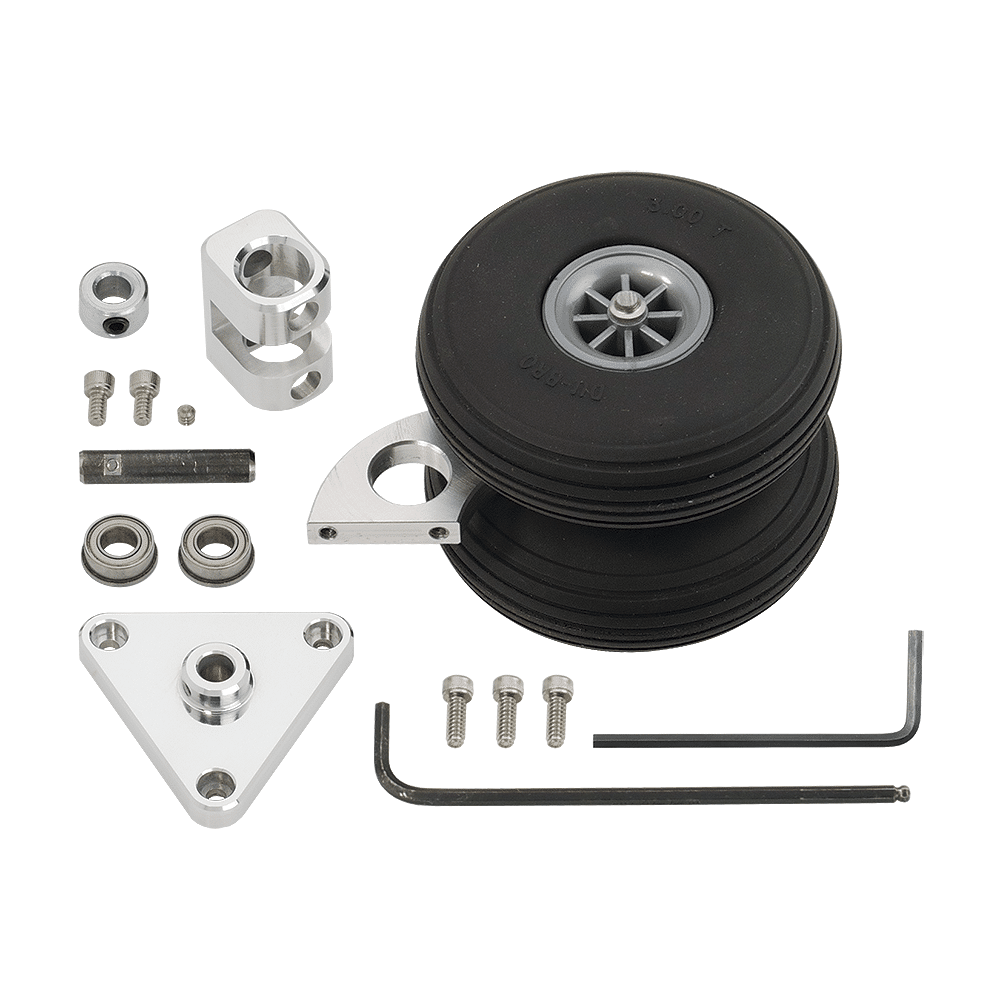

Kit Contents:

  • (1)  –  Arm Assembly
  • (1)  –  Swivel Block
  • (1)  –  Swivel Rod
  • (1)  –  Base Plate
  • (2)  –  Socket Cap Screw, #6-32 x 1/4 inch length
  • (1)  –  Set Screw, slotted #6-32 x 1/8 inch
  • (2)  –  Flange Bearing, 0.25 inch ID, 0.5 inch OD
  • (1)  –  Shaft Collar, 0.25 inch ID
  • (3)  –  Screw, #6 x 3/8″, Cap ,SS
  • (1)  –  Ball End Hex Key 7/64″
  • (1)  –  3/32″ Hex Key
  • (1)  –  1/16″ Hex Key

Additional Information

Weight 0.652 lbs
Dimensions 1 × 1 × 1 in
