4-20 mA R Click

SKU 64200 Category

$28.00

13 in stock

Product Description

Overview:

Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. For each of the Click boards stocked by Parallax, you will find a documented Spin 2 code example on our Propeller GitHub Object Exchange. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter.

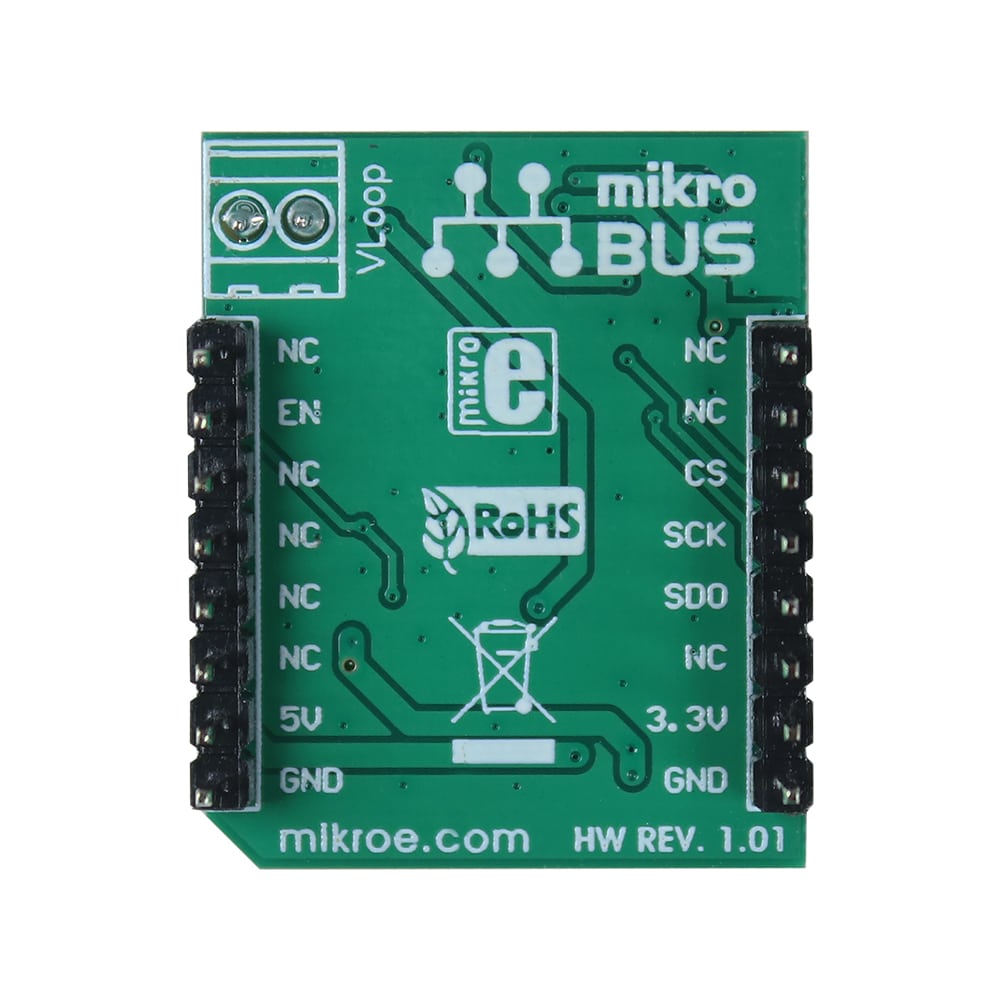

4-20mA R Click is an add-on board in mikroBUS form factor which serves as a receiver in a 4-20mA current loop standard. It features INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter.

It receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V). This voltage is converted into a 12-bit data signal in the MCP3201 A/D converter and sent via mikroBUS™ SPI lines. Together with 4-20mA T Click™ this board forms a complete 4-to-20mA current loop standard. It is designed to use either 3.3V or 5V power supply.

Specifications:

  • Type: Current
  • Applications: Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU
  • On-board modules: INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter
  • Key Features: The board receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V)
  • Interface: SPI,GPIO
  • Compatibility: mikroBUS
  • Click board size: S (28.6 x 25.4 mm)
  • Input Voltage: 3.3V or 5V
  • Weight: 30g

For datasheet see the manufacturer’s product page.

Additional Information

Weight 0.0394 lbs
Dimensions 1 × 1 × 1 in
