SX Key (USB)

SKU 45214 Category


Out of stock

Product Description

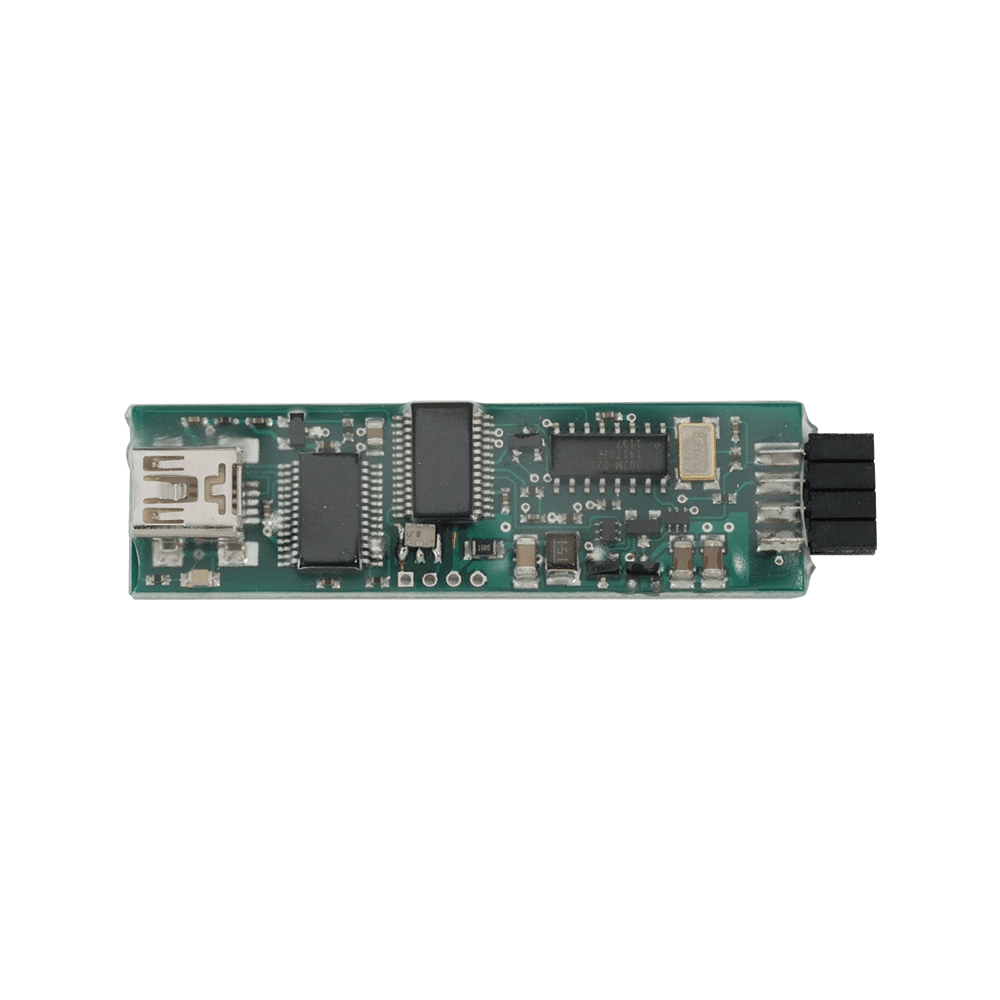

The SX-Key USB is the primary development tool for the SX line of microcontrollers.  Together with the SX-Key Editor Software, the SX-Key programming tool can program and debug in-system chips.  Also at your fingertips is an on-board programmable clock.  The software operates on a Windows platform and is compatible with 98/NT/2K/XP/Vista platforms.

Key Features:

  • The clock is adjustable from 2.75-100 MHz, giving you much needed flexibility
  • Run from the USB power, independent of the target system’s operating voltage
  • Connect to a computer through a full speed USB port
  • Perform in-system programming and debugging, no need to have the chips removed from their application

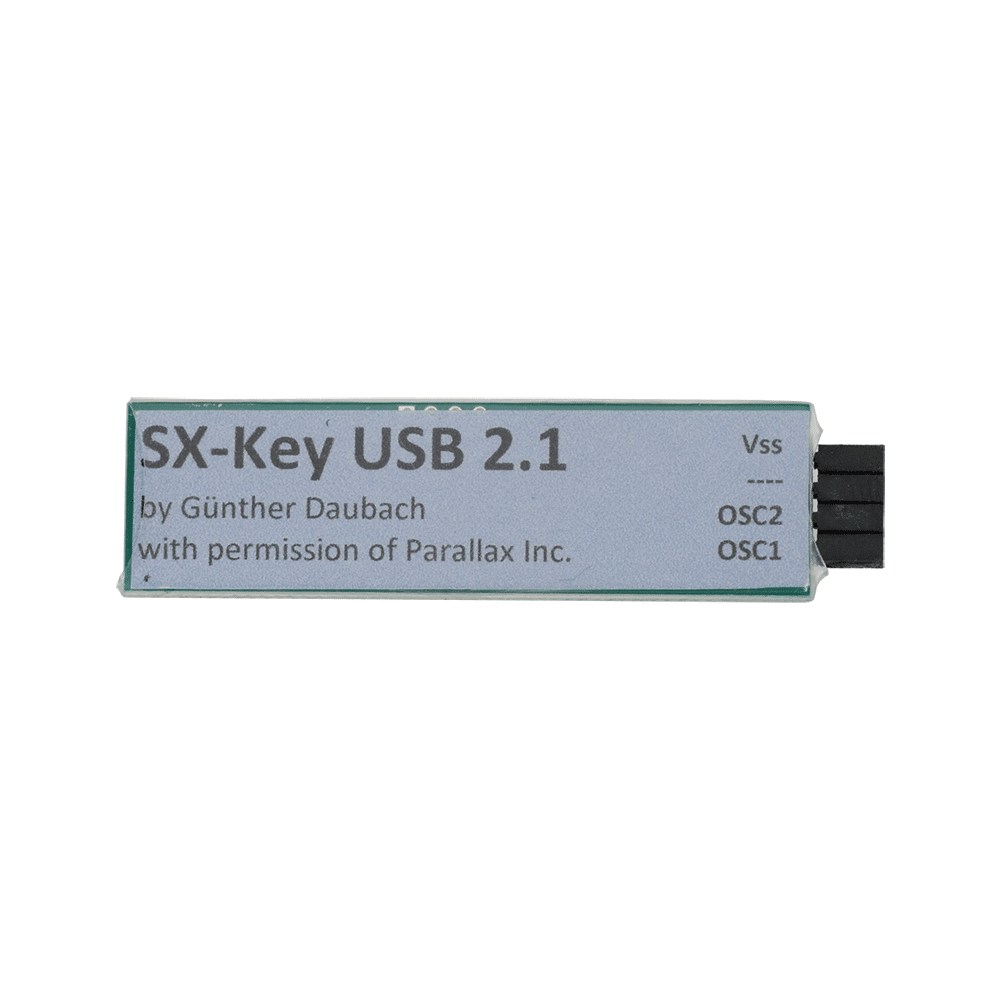

  • Connect to a Parallax SX Tech Board, Basic Stamp Professional Development Board, or any other Parallax board with a 4-pin male SX-Key header
  • Voltage requirements: +5 VDC supplied through the USB connection
  • Communication: USB (v1.1 and 2.0 supported)
  • Dimensions: 2.5 x 0.63 x 0.25 in (63.5 x 16 x 6.5 mm)
  • Operating temp range: +32 to +158 °F (0 to +70 °C)

Additional Information

Weight 0.0162 lbs
Dimensions 1 × 1 × 1 in
