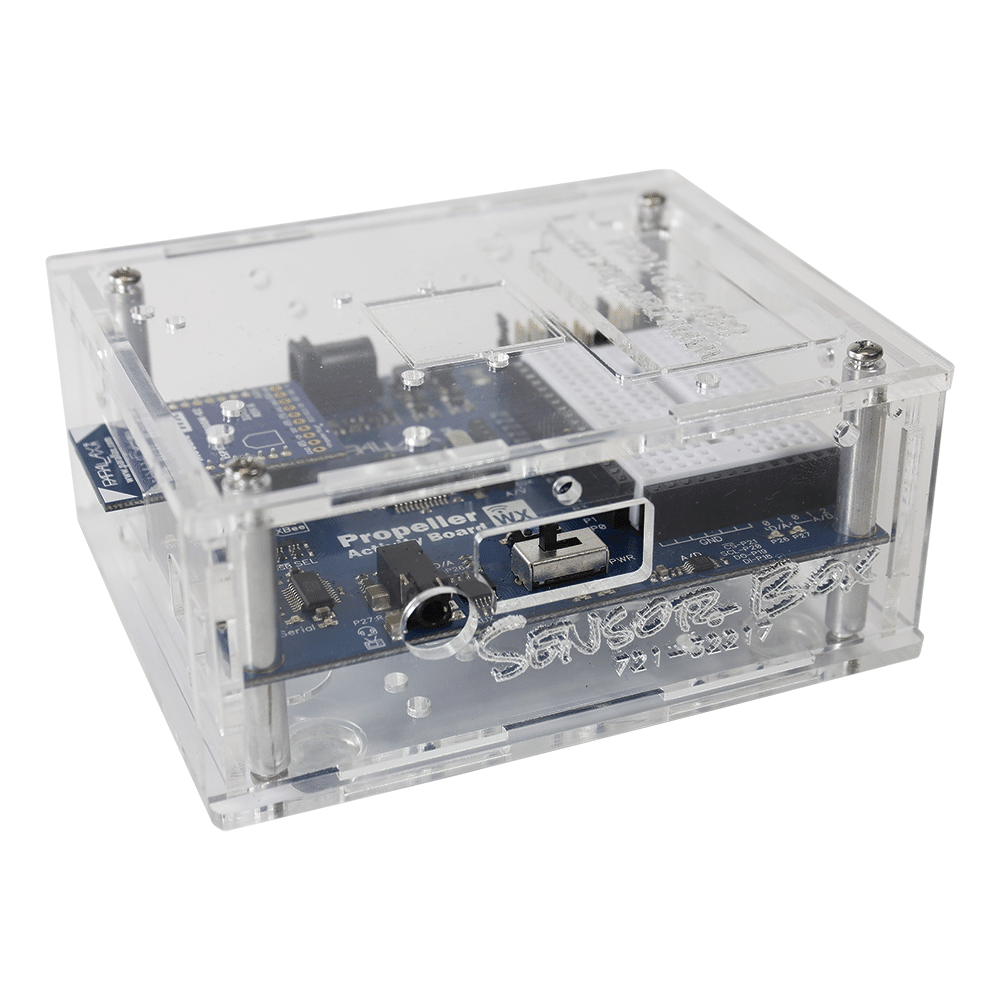

Parallax Sensor Box Kit

SKU 721-32217 Categories , ,

$14.99

24 in stock

Quantity Discounts

Quantity Price
1 - 9 $14.99
10 - 19 $14.24
20+ $13.49

Product Description

Protect your circuits and firmly mount sensors and displays while providing your project an attractive display case. The Parallax Sensor Box Kit is a universal laser-cut acrylic project box with hardware included.  It is designed to fit three of the most popular boards Parallax has to offer.  Pre-cut access ports are in place for the power switch, power jack, USB port and bread board.  The enclosure itself has an assortment of different knock-out points to accommodate a wide variety of Parallax sensors, LCD screens and hardware stands.  Assembly videos demostrate its use with each supported development board.

Features:

  • Clear acrylic parts are laser cut in Rocklin, Ca., U.S.A.
  • Includes all necessary hardware needed for assembly
  • Assortment of screws, nuts and spacers included for sensor and LCD screen installation

Compatible Hardware:

Parallax Development Boards:

  • Propeller Activity Board WX (#32912)
  • BASIC Stamp Board of Education USB (#28850)
  • Board of Education Shield for Arduino (#35000)

Predetermined knockouts accommodate Parallax sensors:

  • Ping Ultrasonic Distance Sensor #28015
  • PIR Sensor (rev B) #555-28027
  • Wide angle PIR Sensor #28032
  • Sharp GP2Y0A21YK0F IR distance Sensor #28995
  • PIR mini Sensor #28033
  • 2 axis joystick #27800

Mounting holes accommodate display and sensor stands:

  • 96×64 RGB OLED Display (#28087)
  • Ping))) Ultrasonic Sensor + Protector Stand (#910-28015B)
  • Dual Aluminum Stand Ping))) Ultrasonic and Sharp IR sensor kit (#725-28915)
  • Aluminum Stand Kit for SF Laser Range Finders (#725-28920)

Specifications:

  • Material: Laser-cut 0.125” clear acrylic plastic w/ paper masking
  • Dimensions, assembled: 4.5 x 3.7 x 2.16 in (11.43 x 9.398 x 5.486 cm)
  • Usage temperature range: -40 to +185 °F (-40 to +85°C)

Kit Contents:

  • (1) – Sensor Box Acrylic Pieces (#721-32007)
  • (14) – Screw, 4-40,⅜” panhead, stainless steel (#710-00036)
  • (8) – Locknut-4-40, ¼” (#700-00024)
  • (4) – Screw, #4-40 x ⅝”, panhead,Zinc  (#710-00029)
  • (4) – Screw, #4-40 x 1”, panhead, SS  (#710-00002)
  • (4) – Foot, Clear, 0.3” (#700-00088)
  • (4) – Standoff, 4-40×1”, female-female, Rnd,AL (#700-00060)
  • (4) – Standoff, 4-40x ⅝”, female-female, Rnd, AL (#713-00001)
  • (6) – Spacer, #4 x ⅛”, NY (#713-00019)
  • (10) – Spacer, #4 x 1/16”, NY (#700-00015)
  • (4) – Spacer, #4 x ¼”, NY (#713-00005)
  • (1) – Screwdriver, Parallax (#700-00064)
  • (1) – Parallax Combination Wrench  (#700-10025)

Additional Information

Weight 0.4096 lbs
Dimensions 1 × 1 × 1 in
