Aluminum Stand Kit for LW20 Mini Laser Rangefinder

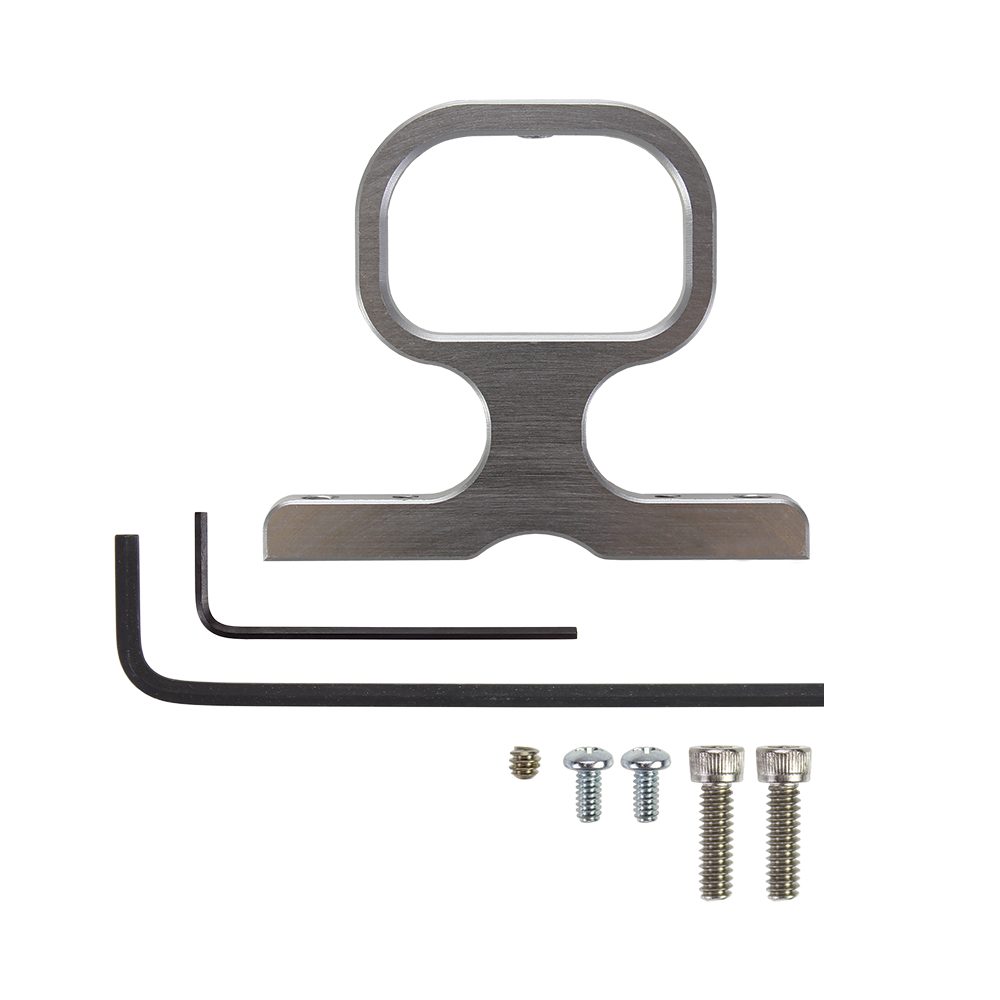

  • 725-28055: Aluminum Stand Kit for LW20 Mini Laser Rangefinder - kit contents

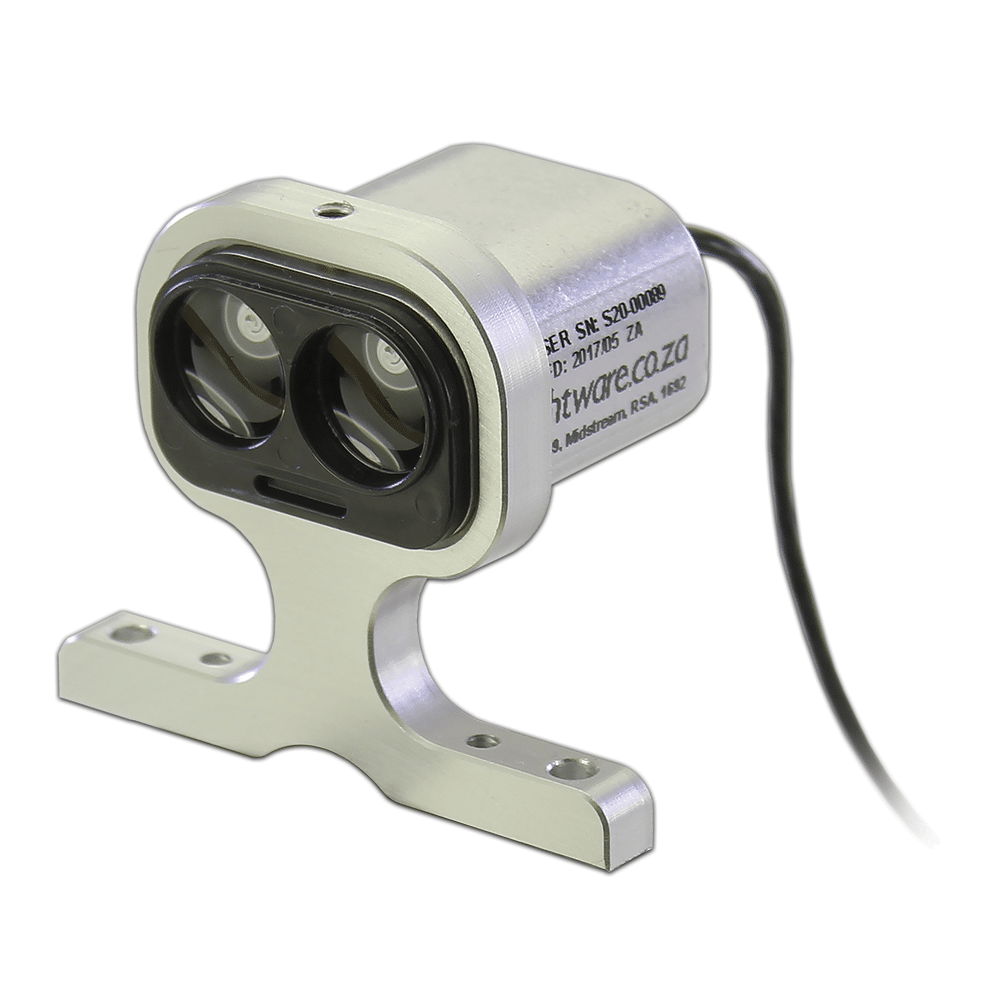

  • 725-28055: Aluminum Stand Kit for LW20 Mini Laser Rangefinder - assembled view
  • 725-28055: Aluminum Stand Kit for LW20 Mini Laser Rangefinder - servo-mounted view
$14.99
Product ID: 725-28055
In Stock: 14
1+$14.99
Downloads

Overview

This kit for the LW20 Sealed Mini LRF is a precisely machined mounting bracket cut from ¼ in thick high-grade aluminum. With easy installation, this stand can gracefully attach your LightWare LW20 LRF (not included) to your robot or drone, protecting the sensor from most collisions.  Mount the stand directly on the chassis, or on a digital servo (not included) for area-sweeping collision detection.

  • LW20 sensor slides into the stand and is held in place with a set screw
  • 1/16" hex key for the set screw is included.
  • Dimensions: 2.2 x 1.85 x 0.25 in (56 x 47 x 6.4 mm)
  • Made from 6061 aluminum with a clear anodized finish
  • Custom designed and CNC-machined at Parallax headquarters in Rocklin, California

Note: the LW20 Sealed Mini Laser Rangefinder and digital servo are NOT included.

Details

Kit Contents

  • (1)  - Set Screw (#710-00044)
  • (1)  - Hex Key 1/16" (#725-00062)
  • (2)  - Zinc, Phil, 4-40 x 1/4" Screw (#700-00028)
  • (2)  - Socket Head 6-32 x 1/2" cap screw (#710-00033)
  • (1)  - LW20 Alum Sensor Stand (#720-28055)

Note: The included Socket Head 6-32 machine screws may be used to attach your stand to your project.  These screws accept a common Ball End Hex Key 7/64" (#725-00021), not included, but sold separately if needed.

Downloads & Documentation

Product Specific Downloads
Download Details More Info
Aluminum Stand Dimensions for LW20 LRF - 56.26 KB | updated: 18 May 2018 - 2:54 pm
LW20 & SF20 Mini Laser Rangefinder Product Manual - 2.46 MB | updated: 24 Jul 2018 - 9:48 am
