SF45/B MicroLiDAR Scanner – 50 m

Product Description

Discontinued from the Parallax store.

SF45/B Overview

The SF45/B is the world’s smallest, lightest, scanning microLiDAR™. This 5 Hz oscillating sensor is highly configurable, with the ability to scan to 320°.

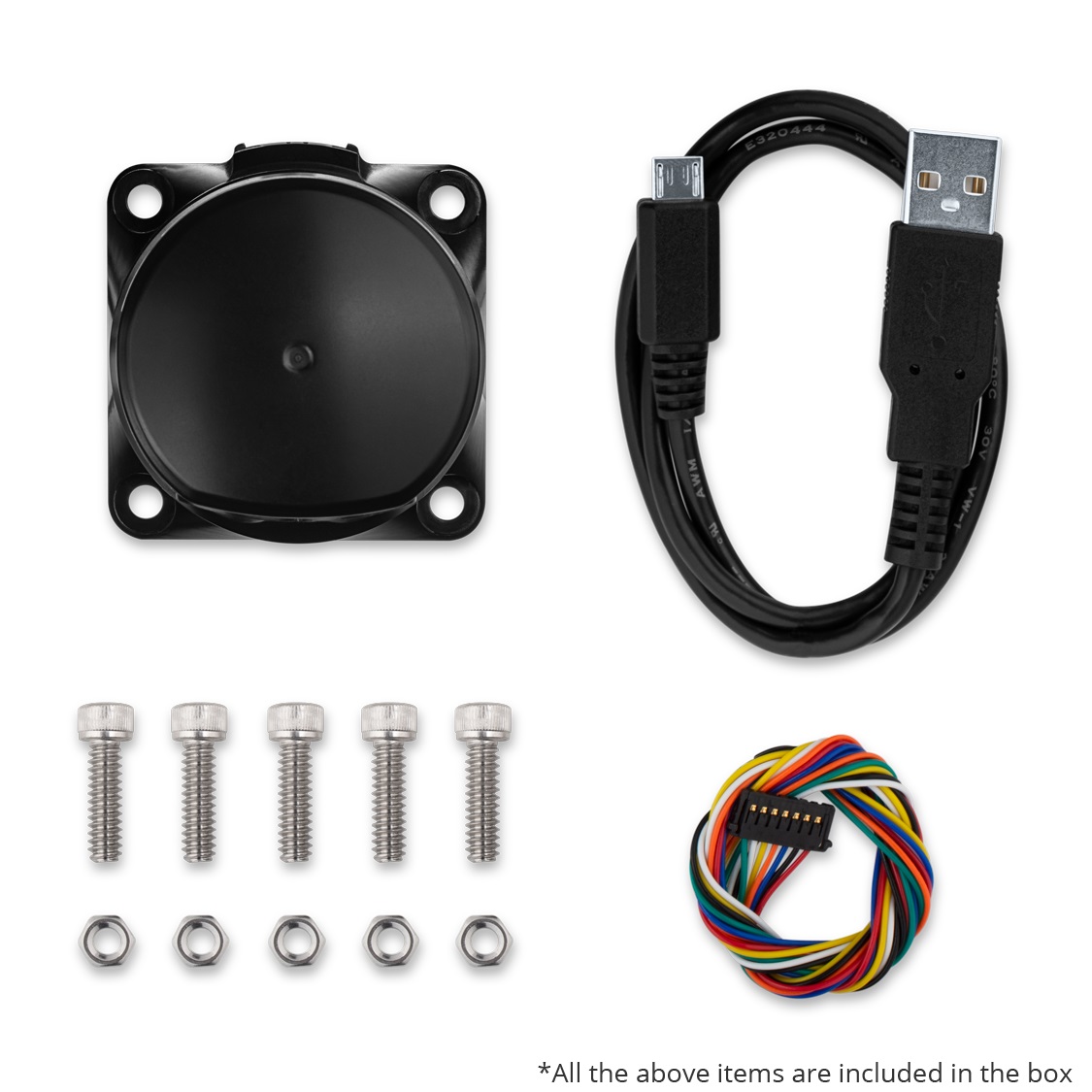

Included in the box: SF45/B LiDAR sensor, a communications cable, a USB to micro-USB cable and five screws, and 5 nuts.

SF45/B Applications

• Detect and avoid
• Position hold
• SLAM
• IoT sensor

SF45/B Specifications

• Measuring range: 0.2 … 50 m / 0.6 … 164 ft
• Update rate: Up to 5 000 readings per second and 5 sweeps per second
• Communication: USB and Serial (3.3 V TTL, 5V tolerant)
• Operating temperatures: -10 … +50 °C / 14 °F … 122 °F
• IP rating: Unit is IP42
• Weight: 57.94 g / 2.04 oz

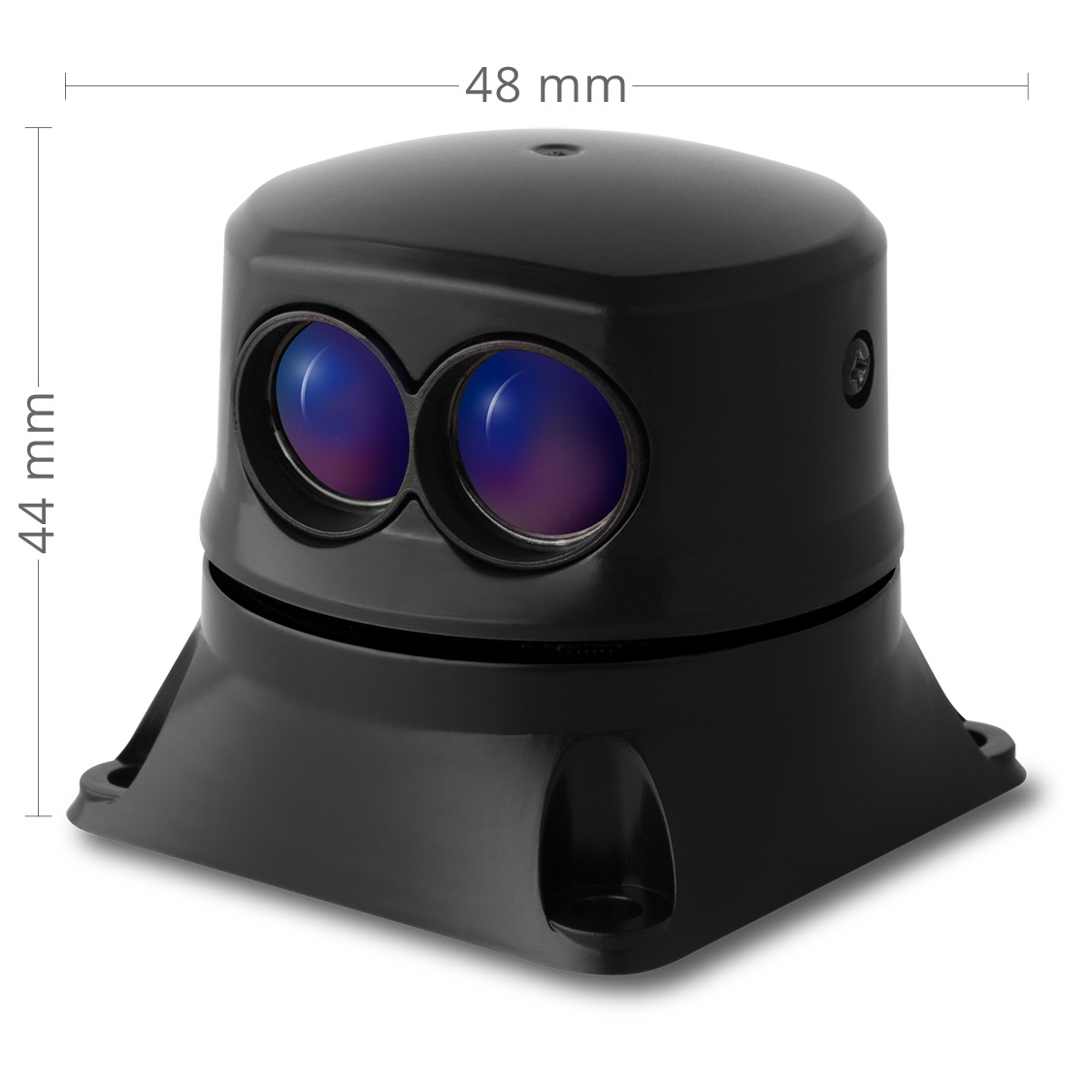

• Form factor: 51 mm x 48 mm x 44 mm / 2 in x 1.9 in x 1.7 in
• Power supply: 5.0 V … 5.5 V
• Laser safety: Class 1M; see the LightWare Laser Safety page
• Approvals: FDA: 1710193-000 (2019/08)
