Product Description
This product is discontinued from the Parallax store.
SF30/D Overview
The SF30/D microLiDAR™ is Lightware’s most powerful sensor in the SF series. This 200 m sensor is known for its high speed, accuracy and performs well in even the most challenging conditions.

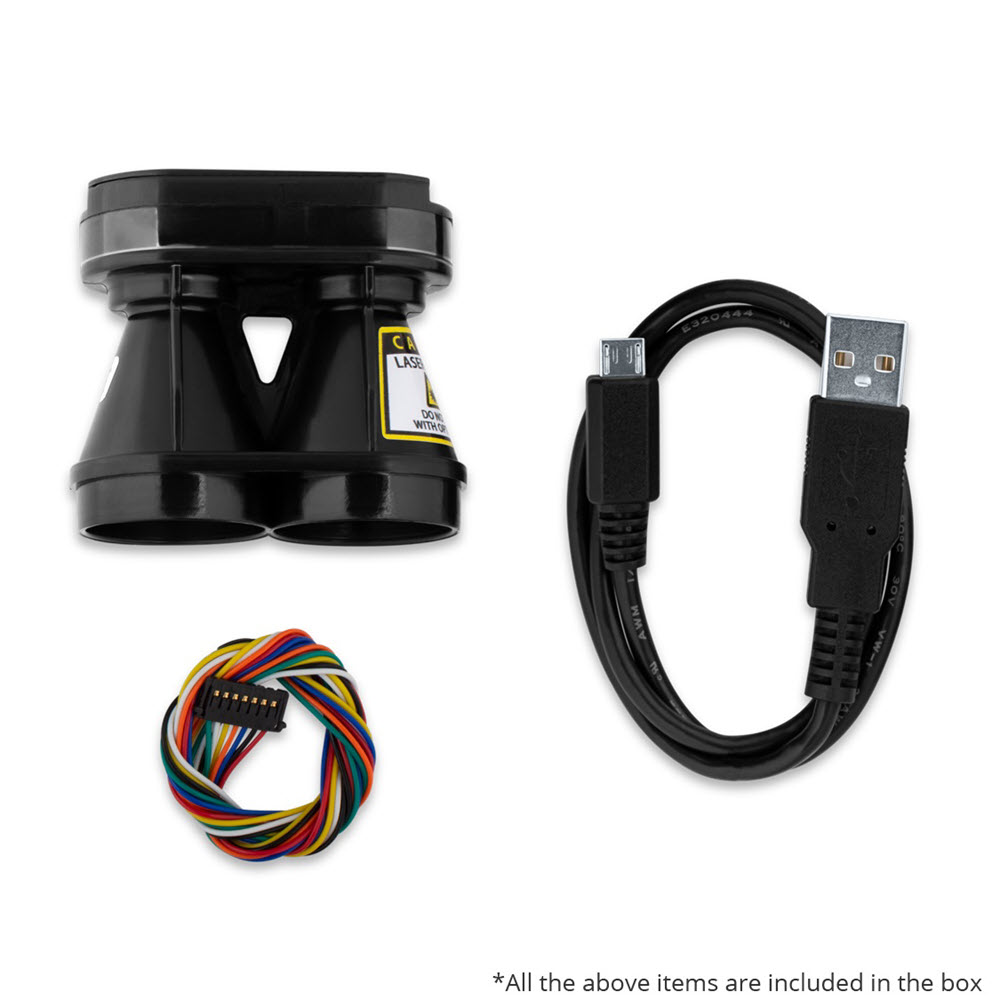

Included in the box: SF30/D LiDAR sensor, a communications cable and a USB to micro-USB cable. Sold separately: Aluminum Stand Kit for SF Laser Rangefinders (#725-28920).
Application Ideas
- Measuring altitude above ground level (AGL)
- Position-hold
- Terrain-following
- Detect-and-avoid
- Assisted take-off and landing
- Scanning
SF30/D Specifications
- Measuring range: 0.2 … 200 m / 0.6 … 656 ft
- Update rate: 39 … 20 000 readings per second
- Communication: USB, Serial and I2C (3.3 V TTL, 5 V tolerant)
- Operating temperatures: -10 … +50 °C / 14°F … 122°F
- IP rating: Unit is IP40. Front face is IP65
- Weight: 31.53 g / 1.11 oz

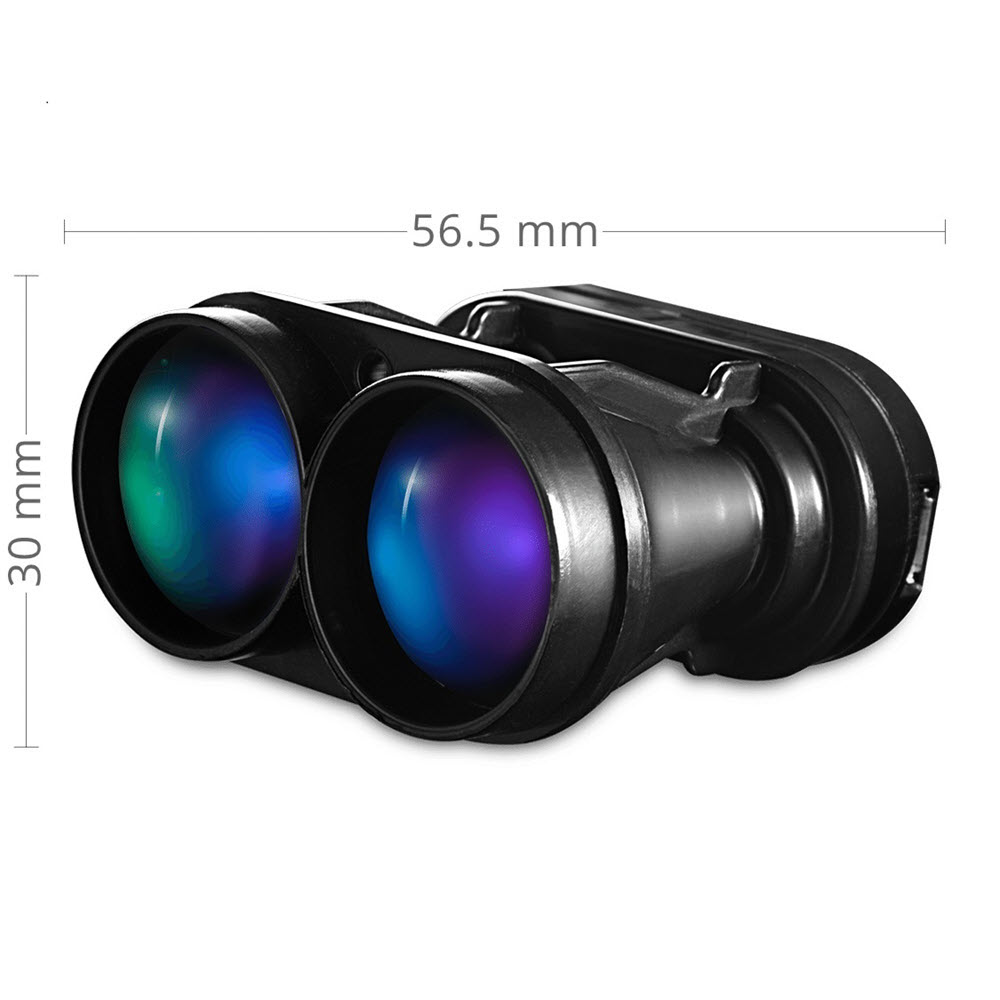

- Form factor: 30 mm x 56 mm x 50 mm / 1.2 in x 2.2 in x 2 in
- Power supply: 4.5 V to 5.5 V

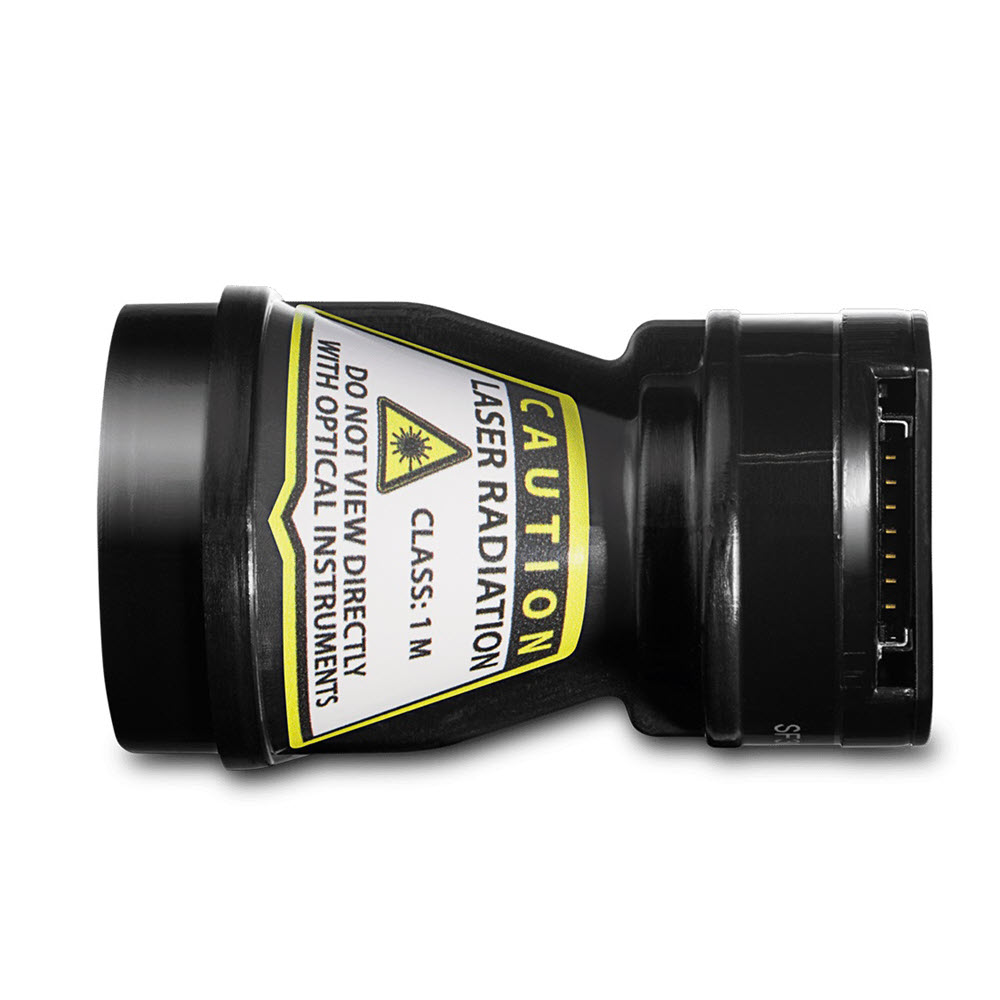

- Laser Safety: Class 1M; see LightWare Laser Eye Safety notice
- Approvals: FDA:1410968-002 (2018/09)
